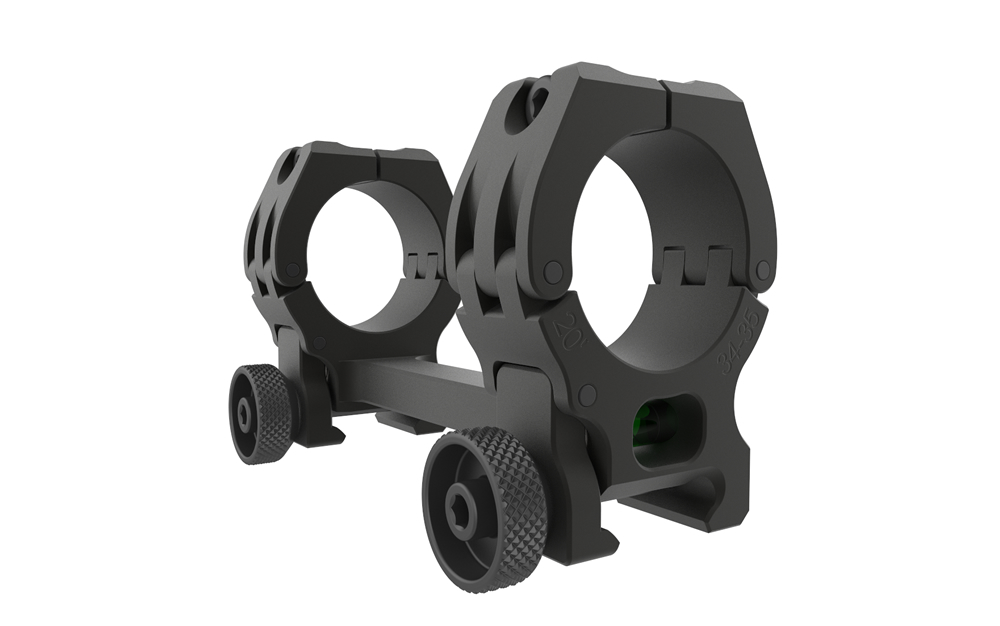

M10 QD-L Scope Mount

https://americanrifle.odoo.com/web/image/product.template/9/image_1920?unique=ebcb8fb

299.00 299.0 USD 299.00

299.00

Not Available For Sale

  • Scope Tube Diameter
  • Scope Mount Height
  • Inclination Angle

This combination does not exist.

Replaced by M-BRACE mount.

Go to this Link for M-BRACE:

M-Brace Mount >

The M10 QD-L Scope Mount has been discontinued and replaced by the M-BRACE.  If a size is shown as in stock we still have some and it can be ordered, all other sizes are out of stock and we will not be making more.  Spare parts are still available.

M10 QD-L sizes still in stock as of January 2022:

Diameter - Height - Angle

30-35-30

34-35-30

36-40-20

Overview

  • American Rifle Company’s M10 QD-L is designed for use with rifles having full length rails.

  • Mount height is the distance from the top of the rail to optical center and is defined at the center of the aft ring.

  • Each clamp is 21mm (0.83") in width.

  • Inside distance between clamps is 69mm (2.717").  Outside distance from clamp to clamp is 111mm (4.370").

  • Designed to fit Picatinny (MIL-STD-1913) rails.

  • Proudly engineered and manufactured in the USA.

Parts & Accessories >

Details

The M10 QD-L features two innovative spring-loaded, pivoting rail clamps. Due to the high placement of the pivot and the design’s inherently low friction, the pivoting clamps impart the majority of the clamping force upon the rail, not the ring. The resulting efficiency enables tighter clamping than that offered by conventional levers. Moreover, the pivoting rail clamps won’t get stuck like levers do and don’t need to be adjusted for variations in rail size. They offer real QD functionality enabling the shooter to remove and reattach a scope in seconds. The thumb screws are made from 410 stainless steel and are captivated by an O-ring so you won’t lose them. Their knurled and comparatively inconspicuous design offers a secure grip while making them less prone than levers to snagging equipment or brush.

The M10 QD-L features a crowned-rail interface which precisely and correctly engaged rails, even those which fail to meet Mil and STANAG specification. The result is excellent return-to-zero performance.

The M10 QD-L holds firmly without marring or indenting the scope.

The uniquely split rings of the M10 QD-L maintain reticle alignment during scope installation while their low profile leaves the shooter with a clear view of the turrets.

Extremely strong and light-weight the M10 QD-L is CNC machined from 7075 aluminum alloy and anodized for excellent corrosion resistance and a matte-black finish.

Stainless steel hardware is used throughout.

Torque spec: 5.6-6.2 Nm (50-55 in-lbs) on scope clamp screws.  Knurled rail clamp screws may also be torqued to 5.6-6.2 Nm (50-55 in-lbs) if loosening with fingers is not needed.

ATTENTION VINTAGE SCOPES: We highly recommend a lower starting torque value of 35 in-lbs. to mitigate potential deformation to the tube.

Available Sizes and Angle of Inclination


Dimensions:

Odoo CMS- Sample image floating


Available sizes:




30mm Dia34mm Dia35mm Dia36mm Dia40mm Dia

40mm Height
0 MOA
20 MOA
30 MOA
0 MOA
20 MOA
30 MOA
  0 MOA
25 MOA

20 MOA
25 MOA
45 MOA

35mm Height
0 MOA
20 MOA
30 MOA
0 MOA
20 MOA
30 MOA


20 MOA



Weight:

Weight (ounces) and mass (grams) for sizes available.  Numbers are for a complete QD-L weighed on a scale with 0.1 oz resolution.

Many sizes are similar in weight because the height is defined as the optical center to top of the rail.  Therefore, as the diameter increases the amount of material in the mount between the bottom of the scope tube and the rail decreases.


30mm Dia34mm Dia35mm Dia36mm Dia40mm Dia

40mm Height
8.3 oz
235 g
8.5 oz
241 g
8.5 oz
241 g
8.5 oz
241 g
8.7 oz
247 g

35mm Height
7.9 oz
224 g
7.9 oz
224 g

 7.9 oz
224 g
