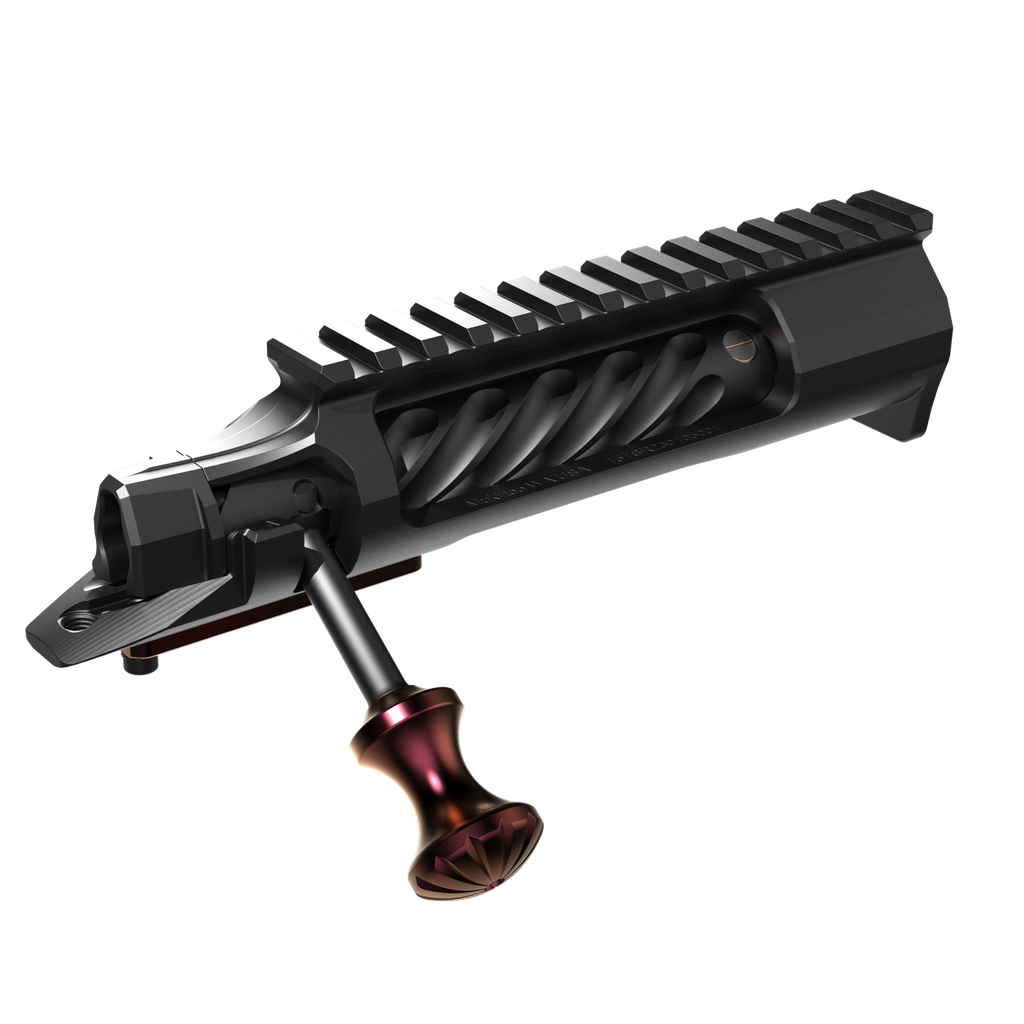

Coup De Grâce Bolt Action
https://americanrifle.odoo.com/shop/coup-de-grace-bolt-action-1747 https://americanrifle.odoo.com/web/image/product.template/1747/image_1920?unique=957f279FFL Information
Bolt actions must be shipped to a licensed FFL (Federal Firearms Licensee).
Your order confirmation email will contain FFL shipping instructions.
Details
Whether it puts competitors out of their misery or puts and end to the confusion resulting from the myriad of other bolt actions with little or nothing to distinguish one from the other, American Rifle Company’s Coup De Grâce is certainly worthy of its name.
From the Oxford English Dictionary:
e. coup de grâce n. /ku də ɡras/ [literally stroke of grace] a blow by which one condemned or mortally wounded is ‘put out of his misery’ or dispatched quickly; hence figurative a finishing stroke, one that settles or puts an end to something.
The Coup De Grâce does more with less and looks great doing it with its beautiful and simplified design. The bolt assembly is composed of only sixteen parts, but can function with as few as twelve, of which two are springs and one is a pin. The entire bolt, even the striker assembly, can be disassembled in the field without the use of tools.
The Coup De Grâce is explosively tested for safety at pressures that greatly exceed standard proof loads.
- Short action weight: 947 grams (2.1 pounds)
- Long action weight: 1084 grams (2.4 pounds)
Receiver
- Remington 700 footprint
- Integral recoil lug
- Integral 20 or 30 MOA Picatinny rail
- 1.0625-20 UN 2B barrel thread
- Screw-adjustable trigger hanger
- AIAW optimized - no mag latch modifications necessary (short action)
- AICS compatible with optional forward hard stop piece (short action)
- AICS 3.850"/CIP magazine compatibility (long action)
- Robust, 9 o'clock bolt release
- Receiver-mounted passive (aka mechanical) ejector
- DLC Finish
Bolt
- Tool-less bolt assembly
- 3 lug interchangeable floating bolt heads 0.378" to 0.588"
- 70° bolt rotation
- Controlled-round-feed extractor with ability to push/single feed
- Pivoting handle primary extraction
- Fixed handle option for conventional cam extraction
- Dual cocking cams
- Toroidal bolt-lug bearing surfaces
- Standard 5/16-24 UNF 2A bolt knob thread
- Black nitride finish
Please be advised that cartridges with 14.93mm (.588 in) diameter case heads, i.e. 338 Lapua Mag, will not be engaged by the extractor as they are released by the magazine feed lips. Instead, they will feed in a manner like that exhibited by push feed actions, especially if used with the fixed bolt handle.
We strongly recommend choosing the pivoting handle for use with the 588 bolt head for two reasons. First, large cartridges are more likely to get stuck in the chamber than small cartridges. And secondly, the cartridges will be extractable without the need to rotate the bolt closed.
Barrels
- Please see the Barrel Interface Drawing for complete barrel details
- Conical breech barrels are required for cartridges having a case head of .473" and smaller
- Flat breech barrels should be used for cartridges having a case head of .532" or larger - this includes Savage small shank prefits
Chassis + Stocks
- Remington 700 pattern compatibility
- Clearance required for trigger hanger
- Clearance required for 9 o'clock bolt release (this typically applies only to stocks)
The following applies ONLY to SHORT ACTIONS:
- Adjustable magazine latch is ideal to take advantage of dual AICS and AIAW mag compatibility
- AW magazines will fit a standard length magazine latch
- AICS magazines will require a shorter than standard magazine latch
- Clearance is required for use of the optional AICS magazine stop tab
Please watch the 'Mags, Conical Breech and Bolt handles' video on the Videos tab for more information
Bottom Metal
- Stock inlets must accommodate AICS or AIAW compatible DBM bottom metal
- Hawkins M5 DBM bottom metal requires slight modification for clearance of trigger hanger
- Coup De Grâce actions are not BDL compatible
Magazines
- Short actions are optimized for AIAW magazines (Part number: Accuracy International 0726)
- Short actions will feed from AICS magazines but require an adjustable mag latch or modification of a fixed latch
- Long actions are intended for use with AICS magazines, up to CIP/3.850" length
- For 223 Rem and 5.56x45 NATO, use metal Accurate Mag 00100-0037 (10 round) and -0038 (5 round)
- MDT Polymer 223 mag is not compatible with the Coup De Grâce
Triggers
- Remington 700 compatible - must be used without bolt release
- We suggest using a fixed bolt handle with a Trigger Tech Diamond, Bix'N Andy Tac Sport, or other ultra-lightweight triggers
- Tubb triggers are not compatible
Scope Mounts
- Standard 1913 Picatinny and STANAG 4694 rail interface
Bolt Face/Action Length
If you don't see the cartridge you're looking for and are unsure what bolt face you need, please contact us!
Bolt Knobs
Fluting
Please note that all bolts will have a black nitride finish. The unfinished bolt is just for fluting example. Bolts can also be seen in the video linked below.
Pivoting vs. Fixed Bolt Handle
Please watch the video below. Handle information begins at 1:30.
Color
*applies only to bolt knob and trigger hanger
Mags, Bolt Handles, and Conical Breech
Trigger Hanger
Bolt Assembly
Extractor Assembly
Most parts and tools are available for purchase at the link below.
If you do not see the item(s) you are looking for, please contact us.
