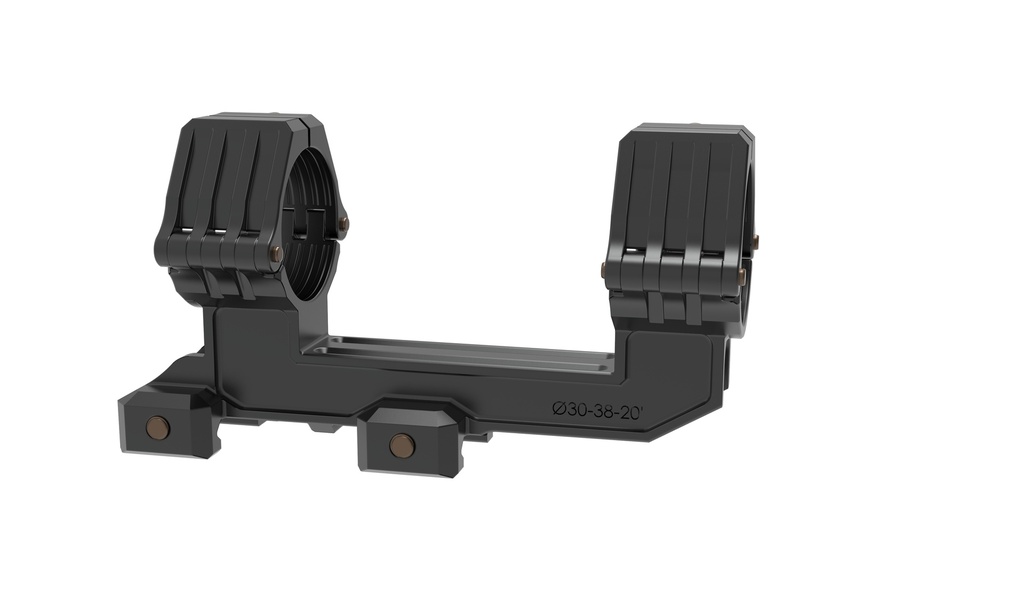

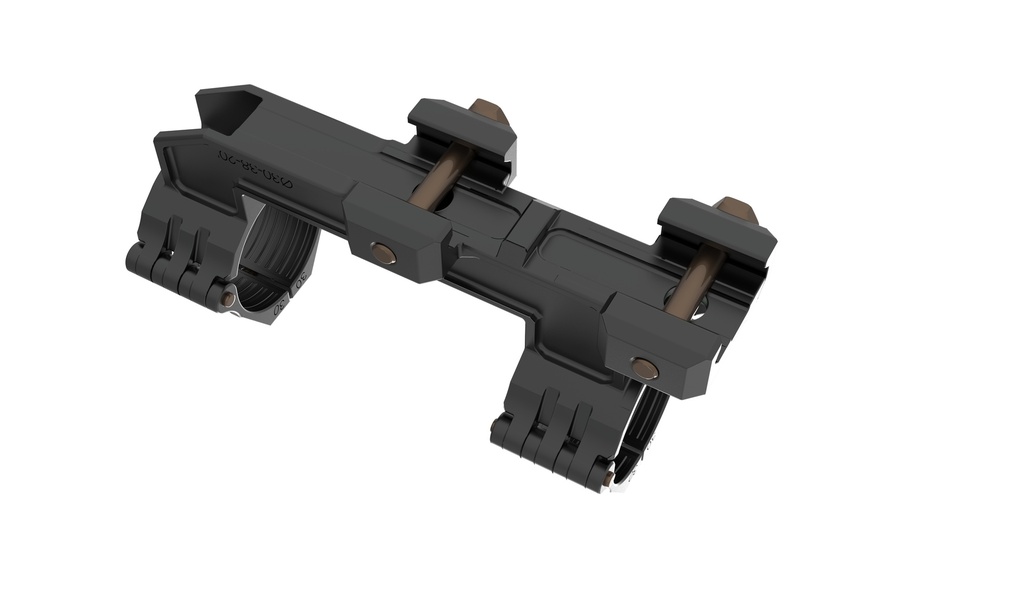

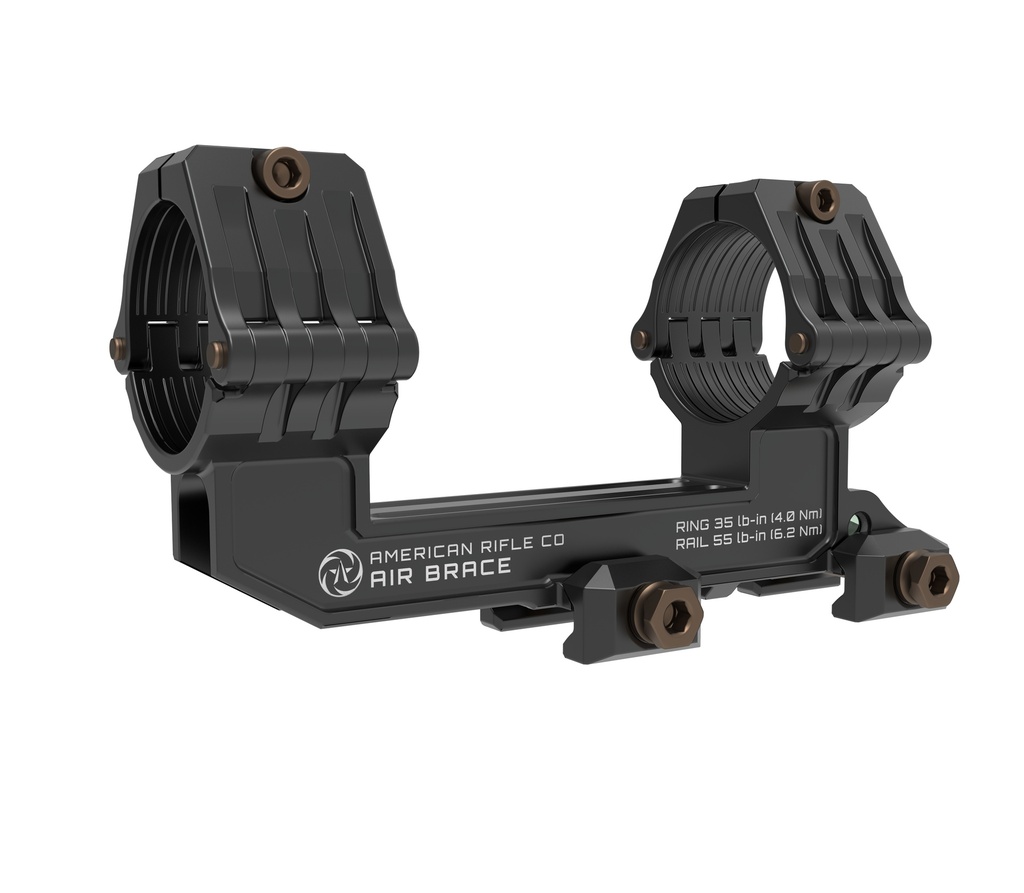

AIR BRACE SCOPE MOUNT

https://americanrifle.odoo.com/web/image/product.template/1960/image_1920?unique=a788bfe

$ 349.00 349.0 USD $ 349.00

$ 349.00

Not Available For Sale

  • Scope Tube Diameter
  • Scope Mount Height
  • Inclination Angle

This combination does not exist.

Contact Us

OVERVIEW

  • Simple and easy no-roll scope mounting
  • Recoil Proof Non-Marring Scope Grip
  • Excellent Return-To-Zero
  • Designed to fit Picatinny (MIL-STD-1913) rails.
  • CNC Machined High-Strength 7075 Aluminum
  • Proudly Made in the USA

WHAT'S IN THE BOX

  • Air Brace Mount

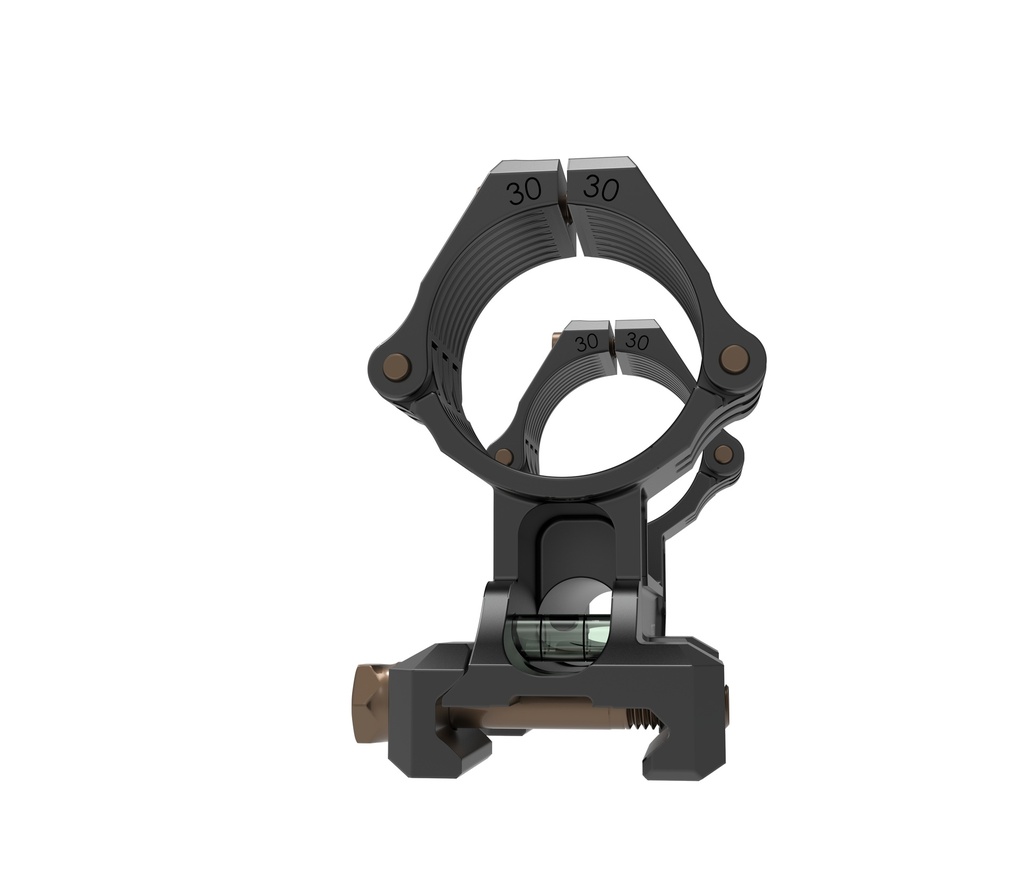

  • Bubble level (assembled)
  • Mounting instruction sheet

DETAILS

Optimized for AR-15 platforms, AIR BRACE is the firearm industry’s highest performing, ultra-light cantilever scope mount.

At an incredibly light 4 ounces, the AIR BRACE punches far above its weight thanks to its efficient structural design.  The tubular cantilevered section of the AIR BRACE maximizes its area moment of inertia (the property that tells us how strong and stiff a beam is) while prioritizing a lightweight and compact design.  Unlike competing products for which the scope supports the forward ring more than that ring supports the scope, the forward ring of the AIR BRACE actually supports the scope because its cantilevered section more effectively bears shear stress between the uppermost and lower most portions of the mount-scope structural system.  The AIR BRACE was designed to cooperate with the scope to create a structural system that is greater than the sum of its parts.

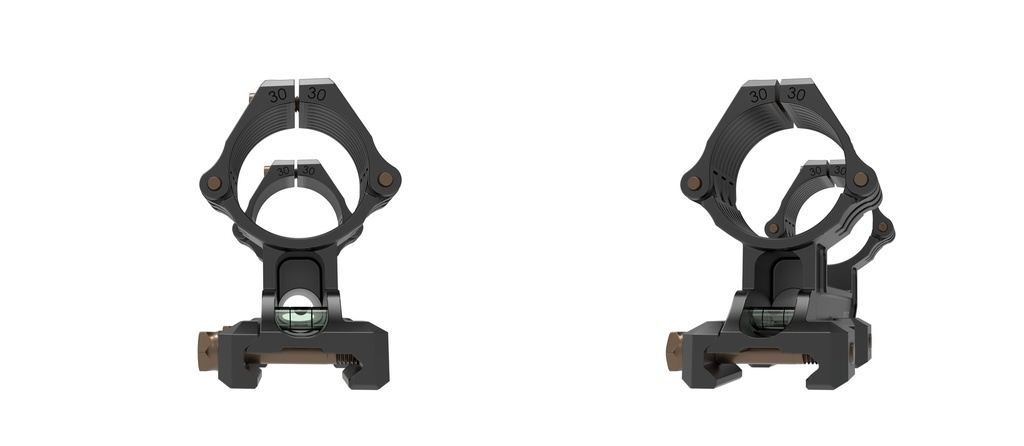

Like our M-BRACE rings and mounts, the AIR BRACE scope clamps exhibit symmetry about the vertical plane which eliminates annoying scope roll when tightening the screws making scope installation the easiest available.  This also eliminates residual torsion (twist) in the installed scope which preserves the flatness of the mount surface that contacts the top of the rail, and thus improves return-to-zero performance should the mounted scope be removed and reinstalled on the gun.

The AIR BRACE scope clamps have relief cuts where they meet at 12 o’clock that disengage the clamp edge from the scope to reduce the risk of marring the scope, and in most cases eliminate it.

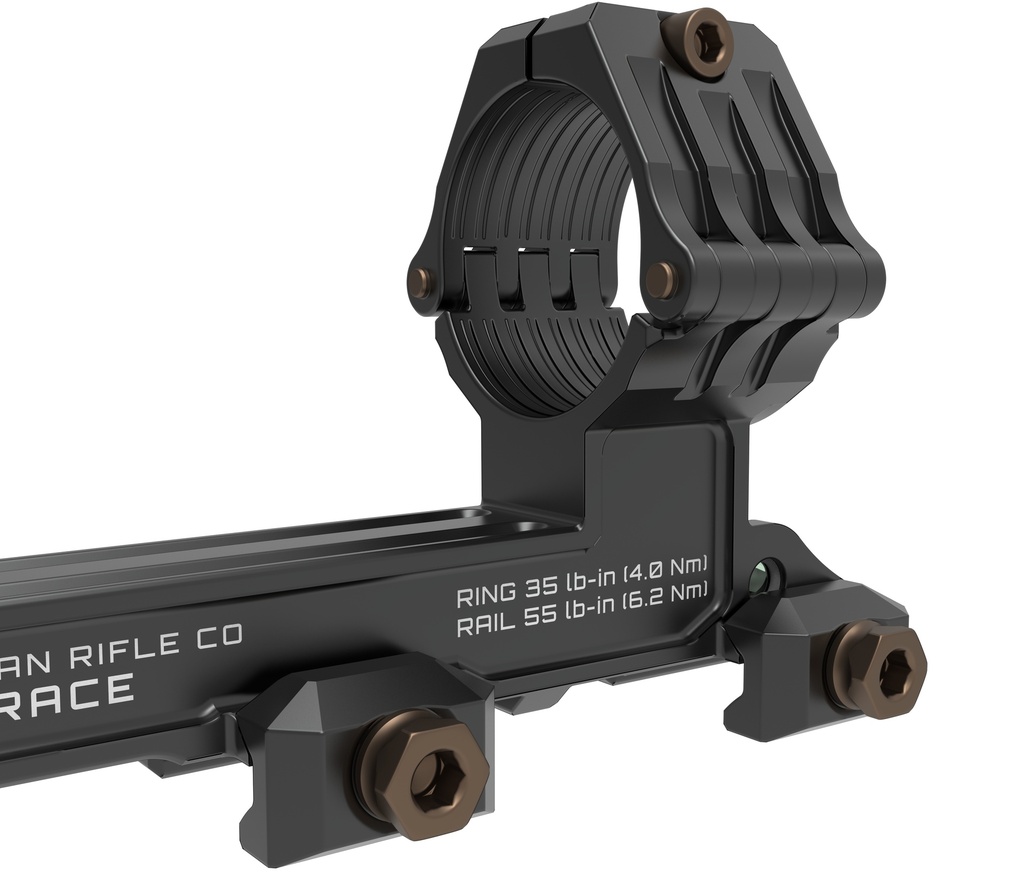

All AIR BRACE screws are made in-house from 17-4 stainless steel offering excellent corrosion resistance and high strength.  Recommended torque for rail and scope screws is clearly engraved on the mount.  And in addition to looking cool, the rail clamp screws can be tightened using any of the following: 4mm or 5/32” hex keys and 8mm or 5/16” wrenches. The scope clamp screw uses a 3mm hex key.


A type 2 black anodized finish is applied to the 7000 series aluminum alloy from which the rest of the AIR BRACE is expertly machined in-house using state of the art CNC machines.

DIMENSIONS


Dimensions are in mm. Inch conversions in brackets.


WEIGHT


Weight (ounces) and mass (grams) listed for sizes available. Numbers are for a complete mount with bubble level weighed on a scale with 0.1 oz resolution.


38mm Height
30mm Diameter3.9 oz
110 g
34mm Diameter4.0 oz
115 g


AVAILABLE SIZES

20 MOA in stock!

*0 MOA available for backorder*


38mm Height
30mm Diameter0 MOA
20 MOA
34mm Diameter0 MOA
20 MOA


HEIGHT

Important Notes:

  • Below are the minimum height recommendations for clearance.
  • Most ARs are better suited for a 38mm height mount.
  • Some chassis have a full length picatinny rail, which give them an AR-like profile. Please refer to the AR column if this applies to your build.
  • For actions with a 90 degree bolt rotation, when the M-Brace is mounted to the far aft recoil slot in the picatinny rail, there is a potential for interference. This issue can be avoided by moving the mount forward 1-2 slots in the picatinny rail or by sizing up.
  • Arken scopes require a 38mm/1.5" height mount.
  • Kahles K525i DLR w/oversized parallax ring will not fit the M-Brace Mounts.
MINIMUM HEIGHT RECOMMENDATION


PENNY TEST FOR REPLICATING MOUNT HEIGHT

To estimate fit, stack pennies on top of your scope rail as pictured below.

The number of pennies to stack is determined by tube diameter and height. Please reference the table below.

Test fit using scope caps and/or a sunshade if you plan to use them.

This test does not account for inclination angle. The height of the aft ring will vary slightly depending on the inclination you choose.


30mm tube34mm tube35mm tube36mm tube
32mm height11 pennies10 pennies9.5 pennies9 pennies
38mm height15 pennies14 pennies13.5 pennies13 pennies


INCLINATION ANGLE

Information below is based on a 100 yd. zero.

Note: The value we recommend should be greater than or equal to the sum of the inclination angles of your picatinny rail and your M-Brace mount.


M-BRACE ACCESSORIES

Patent Pending Serrated Interface.

LASER RANGEFINDER (LRF) MOUNT

Securely engages both sides of the M-Brace to secure your laser range finder even against heavy recoil.

Shop



PIC RAIL

Securely attaches to the M-Brace.  Mount to either side of the M-Brace or LRF mount.

Shop




SPARE PARTS

Please check the parts page for replacement parts.

If you do not see the part you are looking for, please contact us.

Click Here for Parts
