TBAC Bipod

Thunder Beast Arms Corporation Bipod

Made by Thunder Beast Arms in Cheyenne, WY

Includes Pic rail QD clamp

• Legs deployable without pushing a button - just sweep the legs down
• 45-degree mode, but only if you want it after deploying to 90 degrees, so it's not annoying
• Does not pan, this keeps the rifle from falling over
• Tool-less QD feet (rubber included, spike available from TBAC)
• Tool-less leg extension installation and removal (extensions are not included)
• Set-and-forget cant tension, very smooth cant adjustment and rotation
• ADM Picatinny QD mount
• Pic rail clamp can be removed and replaced with B&T mounting plates, e.g. Area 419, RRS, Arca Swiss
• • Area 419 ARCA clamp: Area 419 ARCALock Clamp
• Legs are fully spring actuated but designed to reduce muzzle hop
• Titanium, stainless, and aluminum construction
• • Titanium parts are PVD coated
  • Stainless is ISONITE QPQ Nitrided
  • Aluminum is Type III hardcoat
  • Inner legs are titanium
  • All critical mating surfaces are stainless steel
• "Fat Guy" impact rated
• Stock height, 6.5 - 9 inches @ 90 degrees; 5.1 - 6.9 inches at 45 degrees
• • With optional leg extensions, height, 9.5-12 inches @ 90 degrees; 7.25-9 inches at 45 degrees
• Optional spike feet with carbide tips
• Weight: 14.5 ounces

*Note: this Bipod will not attach to a XYLO chassis as is.  You will need an ARCA clamp or a pic-rail.  ARCA clamp: Area 419 ARCALock Clamp

TBAC Manual >

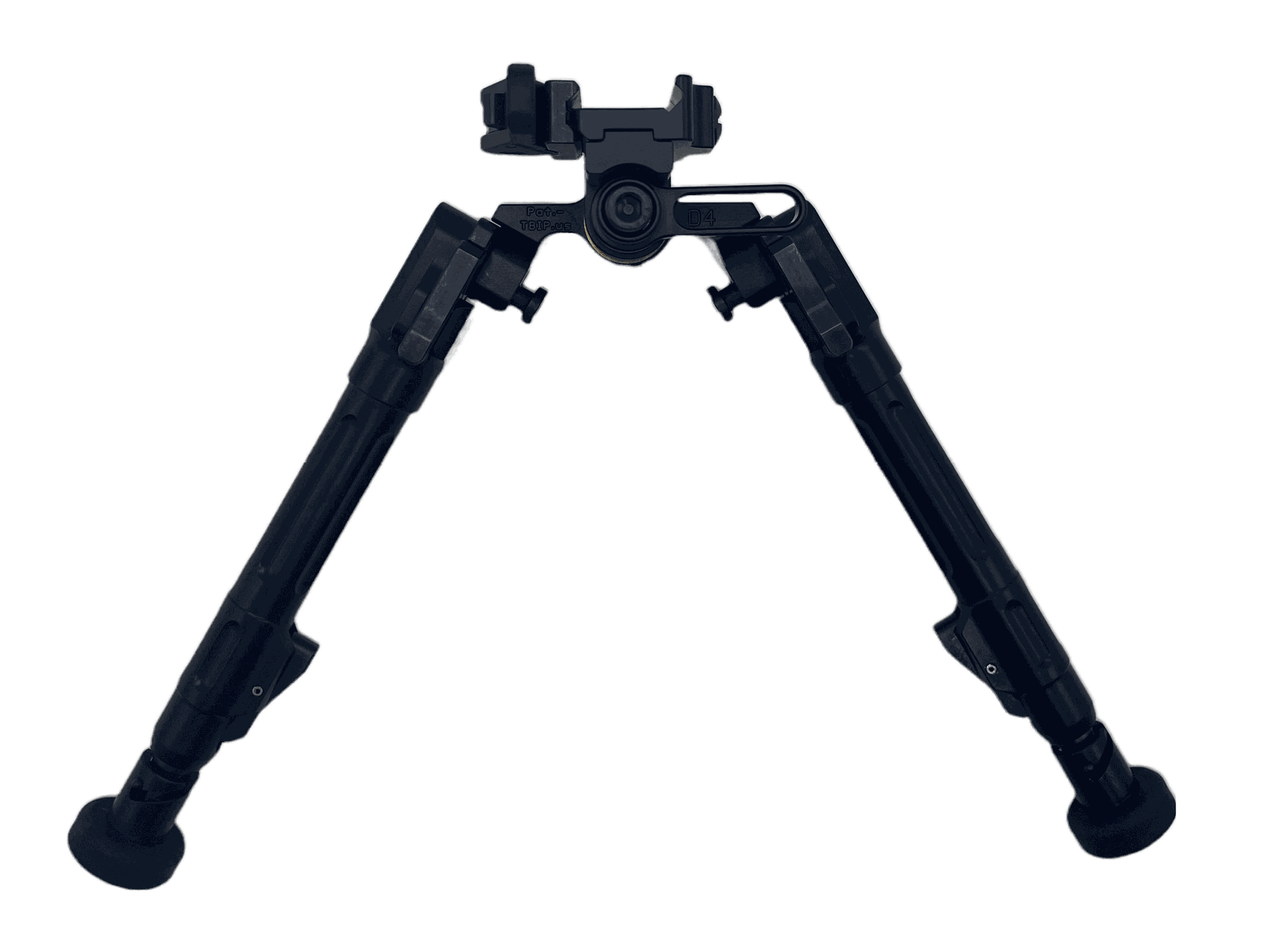

What's in the box? Bipod as shown here:

Bipod with included pic rail QD Clamp (pic rail attached to chassis is not included):

Bipod with Area 419 ARCA Lock clamp (clamp purchased separately):

Shown attached to Xylo Bipod mount with Pic Rail
